| Model: |

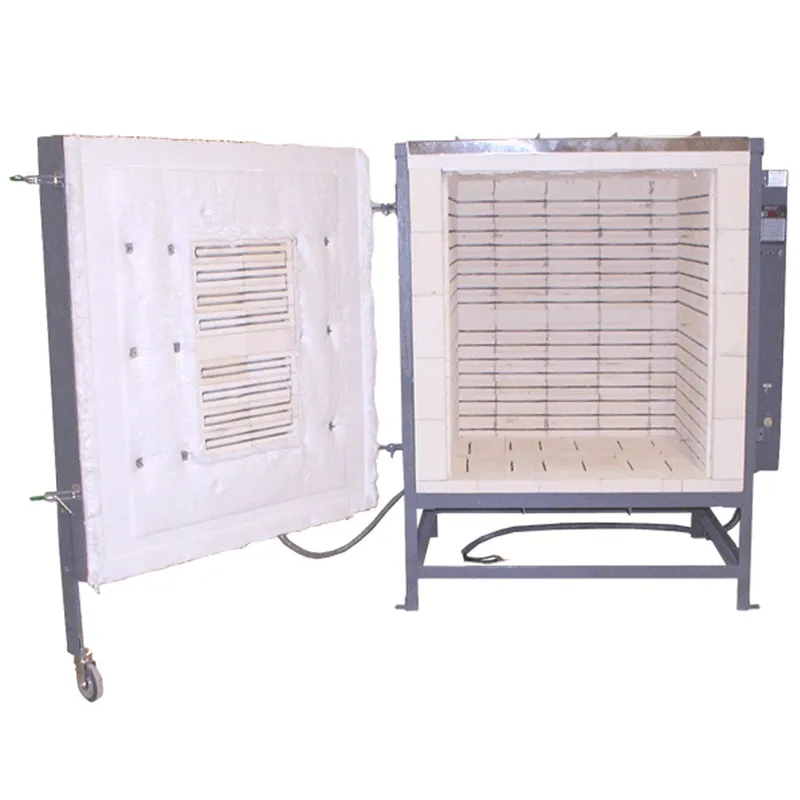

Olympic Kiln – FL36E |
| Inside Dim: | 38″(width) x 38″ (depth) x 45″ (height)- 36 Cubic Feet |
| Outside Dim: | 62″(width) x 60″ (depth) x 72″ (height) |
| Shelf Size: | 18″ Rectangle Shelf – NOT INCLUDED |
| Brick Thickness: | 4.5 + 1″ Fiber |
| Max Temp: | 2350F |
| Voltage: | 240volts |
| Amperage: | 150 amps (Single Phase) / 100 amps (3 Phase) |
| Watts: | 36,000 watts |
| Receptacle: | Direct Wired |
| Ship Wt: | 1,870(Freight) |
| MODEL | PHASE | AMPS | BREAKER SIZE | NEMA PLUG |
| FL36E 240V | 1 | 150 | 200 | DIRECT |
| FL36E 208V | 1 | 173 | 200 | DIRECT |
| FL36E 240V | 3 | 100 | 150 | DIRECT |
| FL36E 208V | 3 | 116 | 150 | DIRECT |
