Reliable AIS antenna designed for optimal communication at sea.

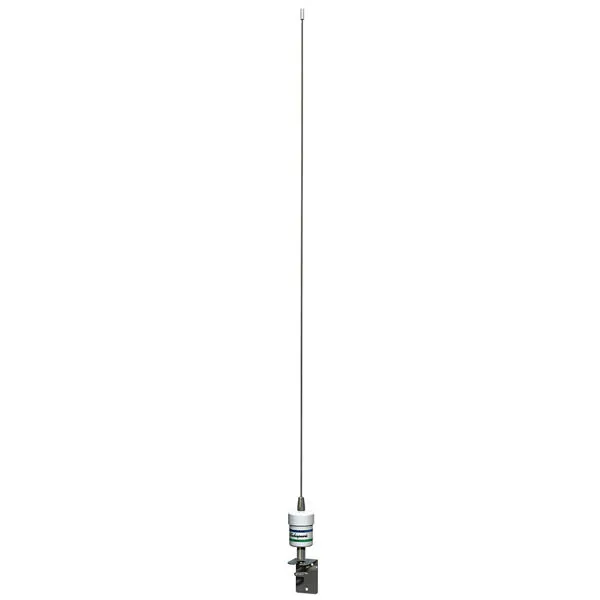

The Shakespeare Automatic Identification System Antenna is engineered to provide reliable communication for vessels equipped with AIS transceivers. With a length of 3 feet and a maximum input power of 50 watts, this antenna ensures effective signal transmission and reception. The 3 dB gain enhances the standard range, making it suitable for various marine applications.
Constructed with brass and copper elements, the antenna is designed for durability and performance. The chrome-plated brass or nylon ferrule features a standard 1-14 thread, facilitating straightforward installation. Its smooth, high-gloss white fiberglass finish not only enhances aesthetics but also prevents yellowing over time, ensuring longevity in marine environments.
This single-section antenna operates within a bandwidth of 7 MHz and maintains a 2.0:1 VSWR, optimizing its efficiency. The S0239 connector allows for easy integration with existing AIS systems. The Shakespeare Automatic Identification System Antenna is a practical choice for those seeking dependable communication solutions while navigating offshore.
Features
- Brass And Copper Elements Provide Standard Range And Reception
- Chrome-Plated Brass Or Nylon Ferrule With Standard 1: -14 Thread Provides For Basic Install
- Smooth, Durable, High-Gloss White/Fiberglass Finish Prevents Yellowing
- Single Section Antennas With 3 Decibel Gain And 50 Watt Max Input Power
- Does Not Contain A Built-In DC Ground Connection
Specifications
- Manufacturer: Shakespeare
- Manufacturer Part Number: 5215-AIS
- Compatibility: AIS Transceivers
- Length: 3 Feet
- Mounting Type: UL-Bracket Mount
- Power: 50 Watt
- Gain: 3 dB
- Bandwidth: 7 Mega Hertz With 2.0:1 VSWR
- Connection Type: S0-239 Connector
- Material: Stainless Steel
